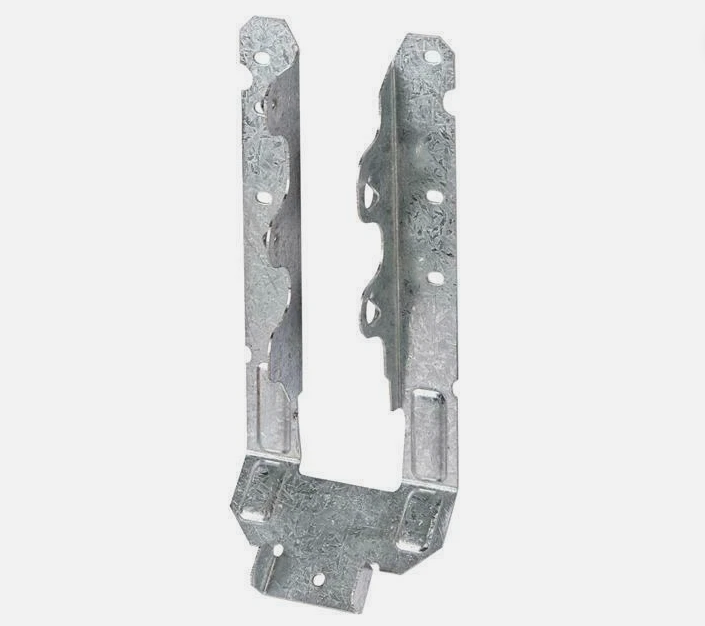

Simpson LRU28Z - Galvanized - Sloped 2x8/2x10 Hanger - (25/pk)

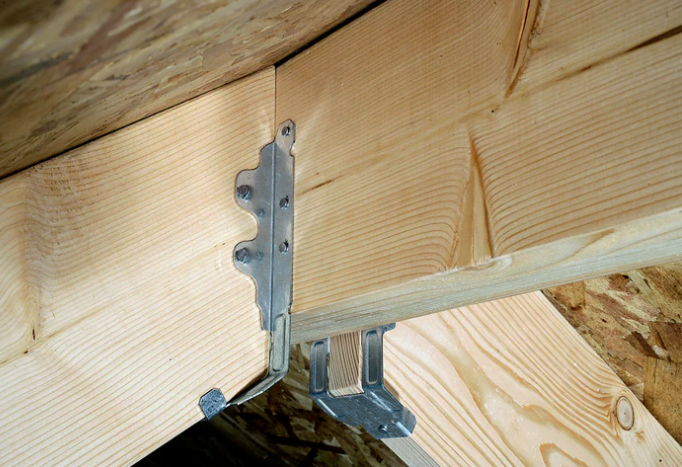

The LRUZ offers an economic alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid sawn rafters, the LRUZ’s unique design enables the hanger to be installed either before or after the rafter is in place. The field-adjustable seat helps improve job efficiency by eliminating mismatched angles in the field and lead times associated with special orders. The LRUZ offers comparable or better load capacity to other rafter hangers at a reduced cost while using fewer fasteners.

• The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications.
• May be sloped down from 0 degrees (0:12 pitch) to 49 degrees (14:12). For slopes greater than 45 degrees allowable downloads are 0.85 of table loads.
• May be sloped up from 0 degrees to 45 degrees.
• For added versatility, the fasteners on the face of the hanger are placed high, enabling the bottom of the rafter to hang below the ridge beam
• Can be installed using nails or Strong-Drive^® SD Connector screws.

• 18 gauge

• ZMAX^® coating (G-185); see Corrosion Information
