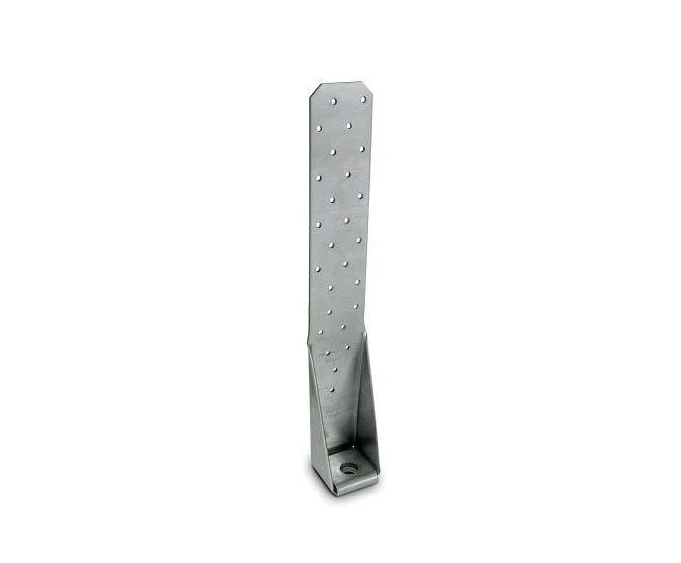

Simpson Strong-Tie HTT5 Hold Down Heavy Tension Tie 16"

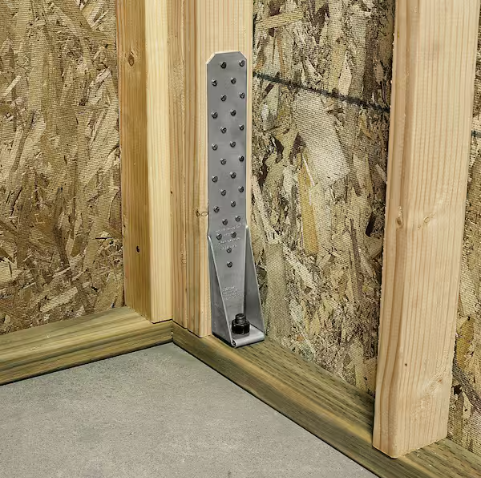

The HTT is a high-strength solution for resisting tension loads in post-pour, wood-to-concrete connections. This heavy, single-piece formed tension tie is fastened with nails or Strong-Drive® SD Connector screws. The HTT has a four-ply formed seat and a design without rivets that does not require washers.

The HTTH6.5 heavy tension tie is an ideal solution for residential construction as well as light-framed wood commercial buildings. Tested per AC 155, the HTTH6.5 is the first nailed-on holdown to achieve up to 7,650 lb. allowable load, making it an economical solution when heavier loads are required.

• Optimized nailing pattern for better performance and less deflection
• Ideal for retrofit or new construction projects
• HTT5KT holdown is sold as a kit with the bearing plate, washer and Strong-Drive SD Connector screws
• Four-fold seat to reduce deflection

• HTT: 11 gauge; HTTH6.5: 10 gauge

• Galvanized. May be ordered HDG.
